12V Mini UPS Battery Backup Power Supply for Wi-Fi Router, Modem, CCTV Camera, and LED – Portable DC UPS 3600mAh

12V Mini UPS Battery Backup Power Supply for Wi-Fi Router, Modem, CCTV Camera, and LED – Portable DC UPS 3600mAh

Rs.3,499.00 PKR
Rs.4,500.00 PKR Rs.3,499.00 PKR
Sale Sold out
Shipping calculated at checkout.

📄 Mini UPS 12V Power Supply

Model: Mini UPS-12V

Type: Uninterruptible Power Supply for 12V DC Devices

🔋 Battery Specifications

Parameter Value

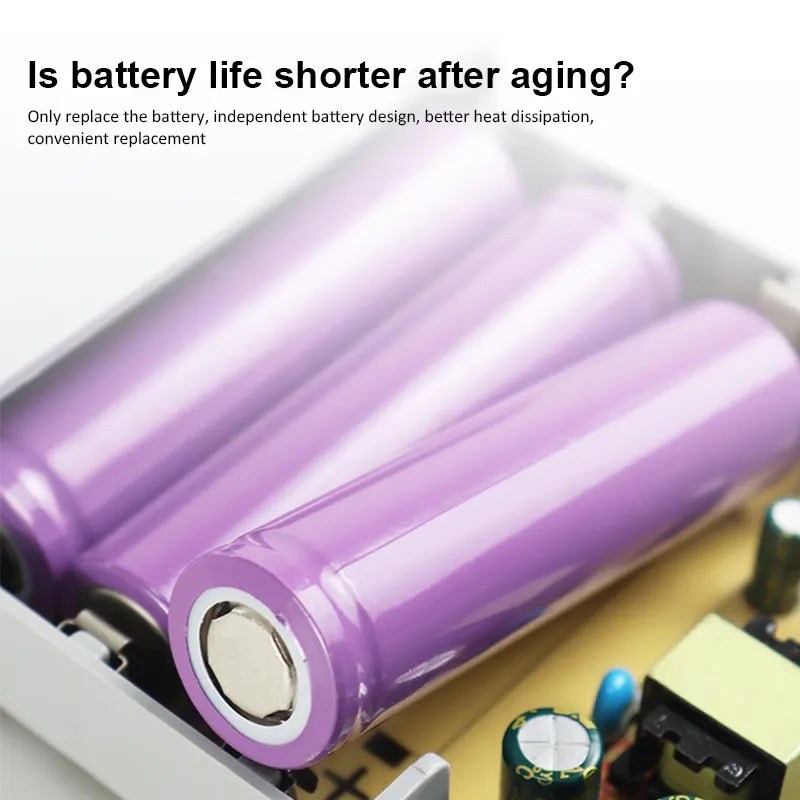

Battery Type Rechargeable Lithium-ion or Li-Po
Battery Capacity 3600mAh (other options: 2200mAh to 12000mAh)
Battery Voltage 12.6V (fully charged), nominal 11.1V
Backup Time 3–4 hours (depends on device power draw)
Recharge Time

3 hours (typical)


⚡ Electrical Specifications

Parameter Value
Input Voltage 100V–240V AC, 50/60Hz
Output Voltage 12V DC (regulated)
Output Current Up to 2A (varies by model)
Output Port DC Barrel (5.5mm x 2.1mm), optional USB



🛡️ Protection Features

  • Overcharge Protection

  • Over-discharge Protection

  • Overcurrent Protection

  • Short Circuit Protection

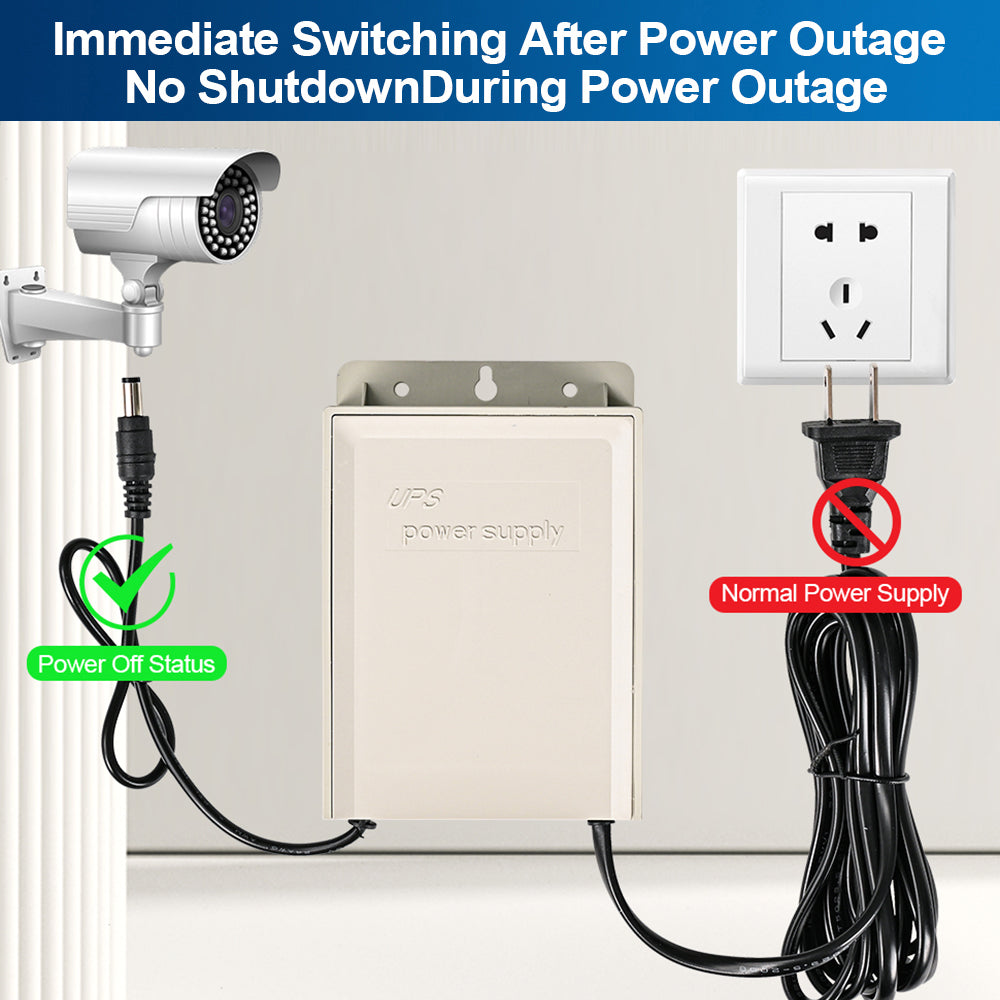

  • Automatic Switching (AC to Battery)






📦 Physical Characteristics

Parameter Value

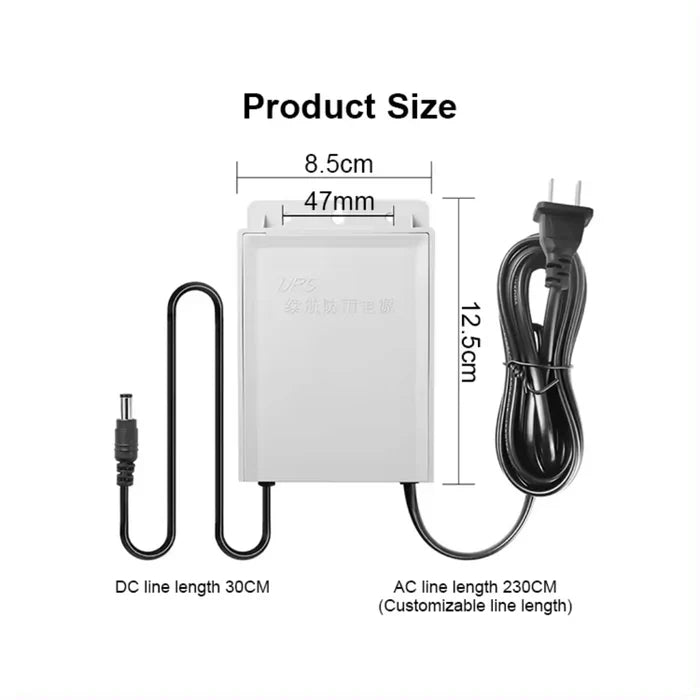

Dimensions ~100mm x 70mm x 25mm (varies)
Weight ~200g to 400g (depends on battery size)

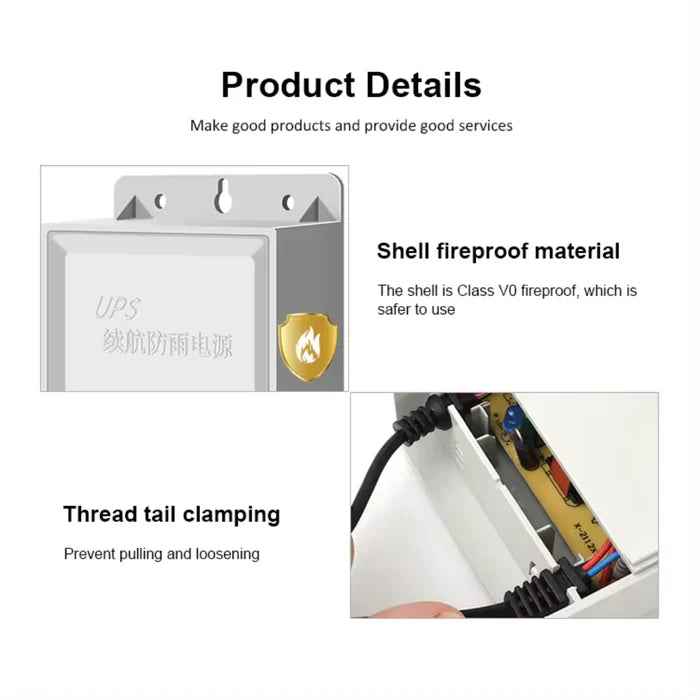

Casing Material ABS Plastic (fire-retardant)
Operating Temperature 0°C to 45°C

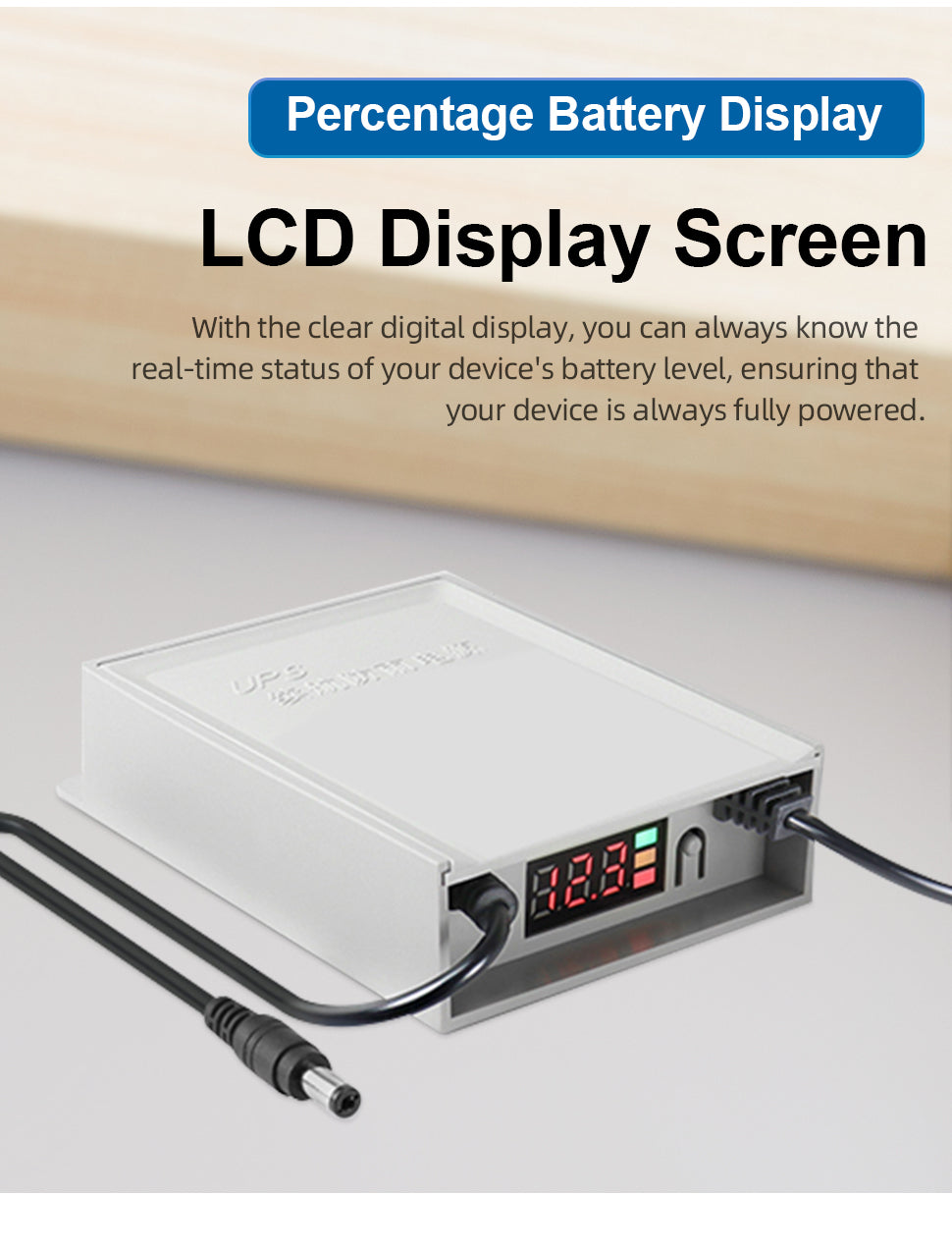

💡 Indicators

  • LED 1: Charging Status

  • LED 2: Battery Level

  • LED 3: Output Power Indicator

✅ Compatible Devices

  • Wi-Fi Routers & DSL Modems (e.g., TP-Link, D-Link, Netgear)

  • CCTV/IP Cameras

  • VoIP Phones

  • LED Lights
